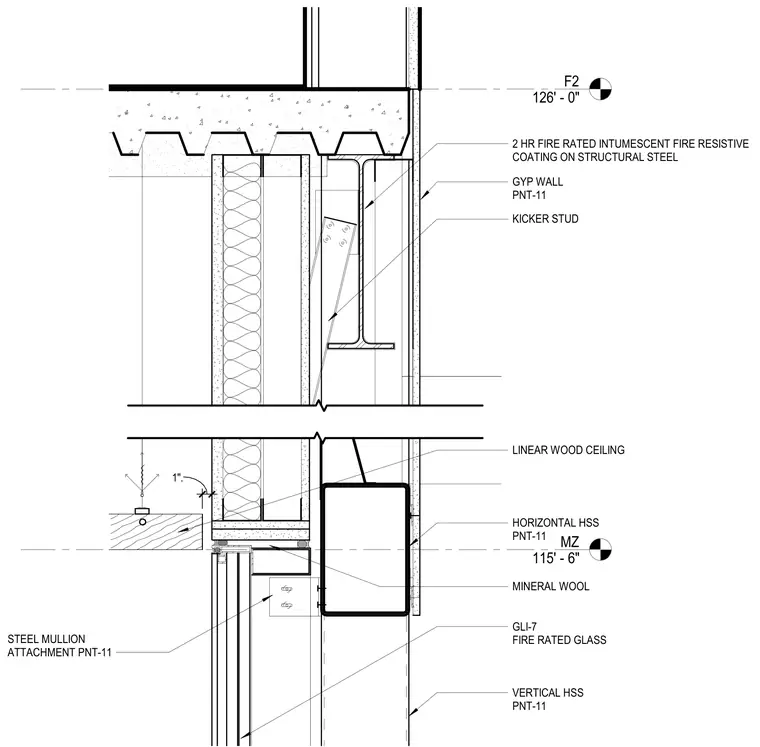

A two-hour fire-rated shaft wall assembly terminates near a concrete-filled metal deck slab and a steel beam protected with an intumescent fire-resistive coating. The gypsum wallboard partition utilizes kicker studs for lateral bracing against the floor structure above. A horizontal hollow structural section receives paint finish PNT-11 and connects to a vertical steel mullion with a steel attachment. Fire-rated glass glazed with GLI-7 is integrated alongside mineral wool insulation. A linear wood ceiling occurs below the floor slab with a one-inch clearance detail.
F2 126' - 0" MZ 115' - 6" HORIZONTAL HSS PNT-11 VERTICAL HSS PNT-11 GLI-7 FIRE RATED GLASS MINERAL WOOL GYP WALL PNT-11 KICKER STUD 2 HR FIRE RATED INTUMESCENT FIRE RESISTIVE COATING ON STRUCTURAL STEEL STEEL MULLION ATTACHMENT PNT-11 1 " . LINEAR WOOD CEILING
