This assembly consists of back-to-back E shaft wall studs or C-H shaft wall studs faced with one layer of 5/8-inch gypsum board on each side. A 1-inch gypsum shaft liner board is installed between the stud cavities with the non-symbol side facing inward. Sound attenuation blankets or acoustical insulation are included within the stud cavity where scheduled per the fire test design UL U415(E). Partition thicknesses range from 3-3/4 inches to 7-1/4 inches depending on the stud size and configuration, achieving STC ratings from 41 to 52.

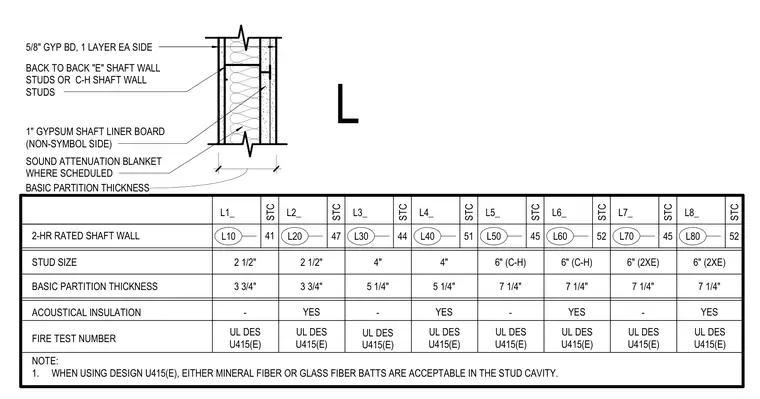

5/8" GYP BD, 1 LAYER EA SIDE BACK TO BACK "E" SHAFT WALL STUDS OR C-H SHAFT WALL STUDS 1" GYPSUM SHAFT LINER BOARD (NON-SYMBOL SIDE) L 2-HR RATED SHAFT WALL STUD SIZE BASIC PARTITION THICKNESS ACOUSTICAL INSULATION NOTE: 1. WHEN USING DESIGN U415(E), EITHER MINERAL FIBER OR GLASS FIBER BATTS ARE ACCEPTABLE IN THE STUD CAVITY. L1_ STC 47 2 1/2" 3 3/4" - 2 1/2" 3 3/4" YES L2_ STC 44 4" 5 1/4" - L3_ STC 51 4" 5 1/4" L4_ STC 45 6" (C-H) 7 1/4" - L5_ STC 52 6" (C-H) 7 1/4" L6_ STC 45 6" (2XE) 7 1/4" - L7_ STC 52 6" (2XE) 7 1/4" L8_ STC 41 BASIC PARTITION THICKNESS FIRE TEST NUMBER UL DES U415(E) UL DES U415(E) UL DES U415(E) UL DES U415(E) UL DES U415(E) UL DES U415(E) UL DES U415(E) UL DES U415(E) YES YES YES SOUND ATTENUATION BLANKET WHERE SCHEDULED L10 L20 L30 L40 L50 L60 L70 L80
