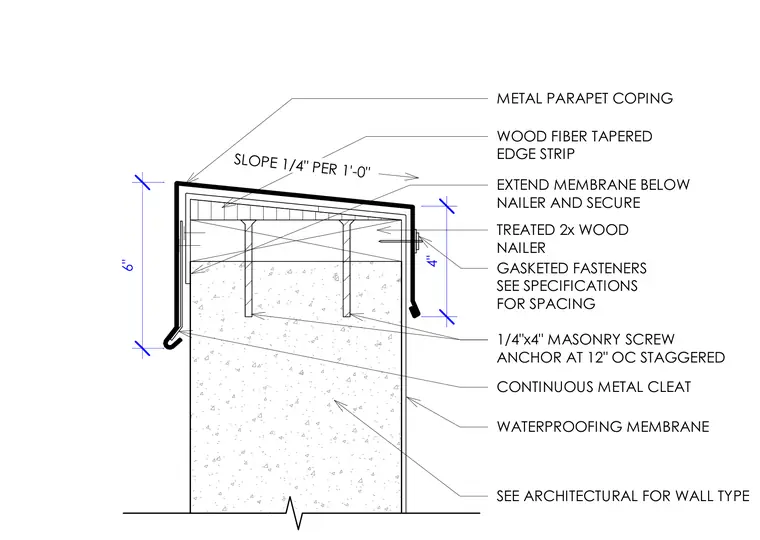

A metal parapet coping caps the masonry wall assembly, supported by a treated two-by wood nailer and a wood fiber tapered edge strip that provides a slope of one-quarter inch per foot. Waterproofing membrane extends below the nailer and is secured by quarter-inch by four-inch masonry screw anchors spaced at twelve inches on center staggered. A continuous metal cleat engages the coping edge, fastened with gasketed fasteners spaced per specifications.
TREATED 2x WOOD NAILER WOOD FIBER TAPERED EDGE STRIP EXTEND MEMBRANE BELOW NAILER AND SECURE METAL PARAPET COPING CONTINUOUS METAL CLEAT GASKETED FASTENERS SEE SPECIFICATIONS FOR SPACING 1/4"x4" MASONRY SCREW ANCHOR AT 12" OC STAGGERED WATERPROOFING MEMBRANE SLOPE 1/4" PER 1'-0" 6" 4" SEE ARCHITECTURAL FOR WALL TYPE
