Curtain Wall Sill and Floor Slab Transition Detail

Materials

Steel Glass / Glazing Aluminum Metal (misc.)

Elements

About this detail

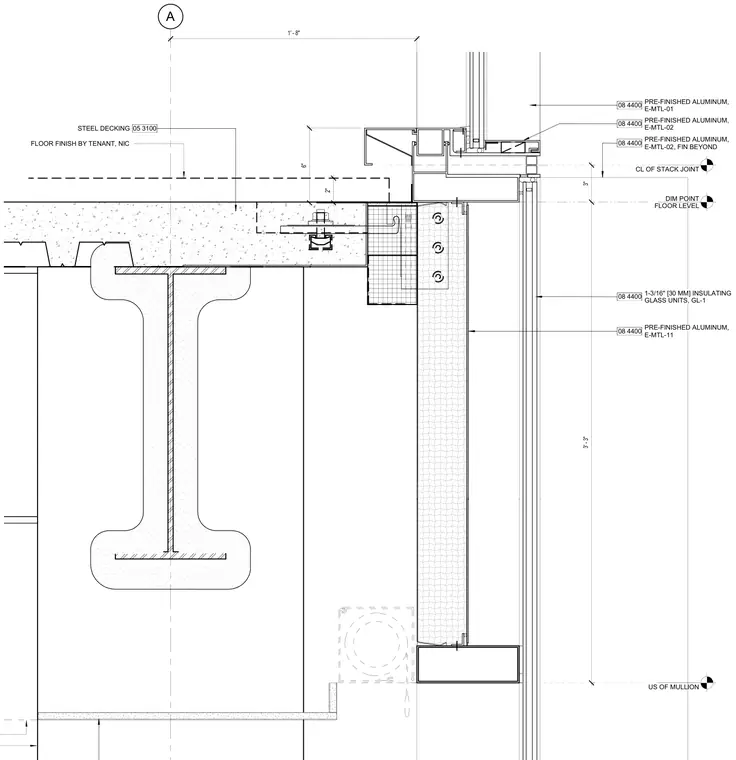

The assembly features a pre-finished aluminum curtain wall framing system with one-and-three-sixteenth-inch insulating glass units and pre-finished aluminum metal panels. The curtain wall anchors to the edge of a concrete floor slab poured over steel decking, supported by a wide-flange structural steel beam. A stack joint centerline and floor level dimension point establish the vertical alignment between the slab edge and the sill framing. Floor finish is provided by the tenant, not in contract.
