Architectural · A-9PNA8

Concrete Spandrel and Upturn Beam Corner Plan

Materials

Elements

About this detail

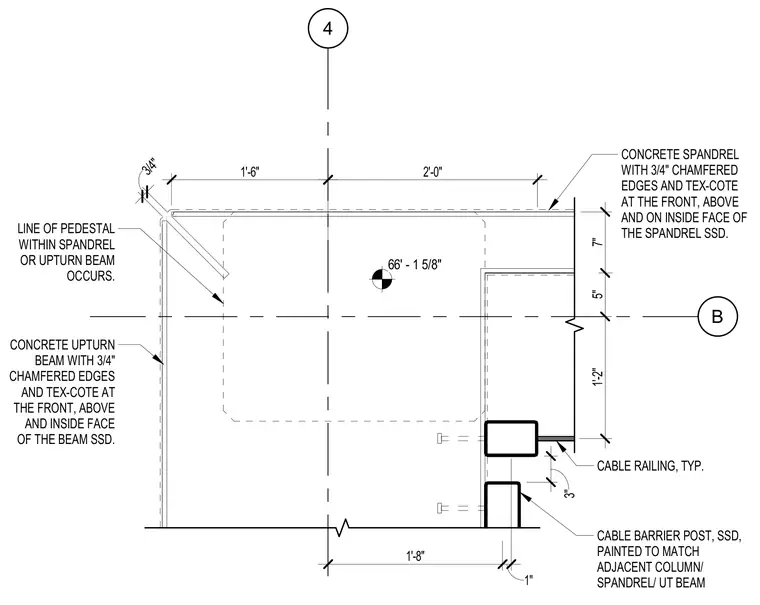

This plan detail shows a concrete spandrel and a concrete upturn beam intersecting at a building corner with structural grid lines 4 and B. Both concrete members feature three-quarter-inch chamfered edges and a Tex-Cote coating applied to the front, top, and inside faces. A dashed line indicates the location of a concealed pedestal within the spandrel or upturn beam zone. A painted cable barrier post mounts to the assembly, supporting a typical cable railing system configured with specific dimensional offsets from the grid lines.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
