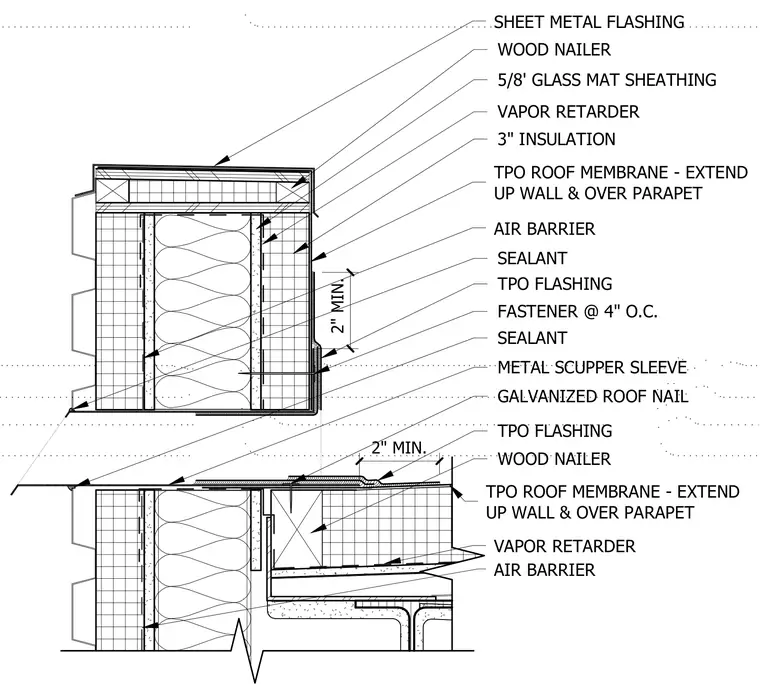

A metal scupper sleeve penetrates a framed parapet wall featuring a continuous TPO roof membrane extending up the wall and over the parapet. The assembly incorporates a wood nailer secured at the top of the parapet, five-eighths inch glass mat gypsum sheathing, three inches of insulation, an air barrier, and a vapor retarder. TPO flashing is integrated around the scupper penetration with sealant applied and fasteners spaced at four inches on center. A two-inch minimum clearance is maintained for the scupper sleeve installation, and sheet metal flashing caps the top of the parapet.
2" MIN. 2" MIN. METAL SCUPPER SLEEVE WOOD NAILER GALVANIZED ROOF NAIL FASTENER @ 4" O.C. SEALANT SEALANT TPO FLASHING TPO FLASHING 3" INSULATION VAPOR RETARDER 5/8' GLASS MAT SHEATHING WOOD NAILER TPO ROOF MEMBRANE - EXTEND UP WALL & OVER PARAPET VAPOR RETARDER AIR BARRIER AIR BARRIER TPO ROOF MEMBRANE - EXTEND UP WALL & OVER PARAPET SHEET METAL FLASHING
