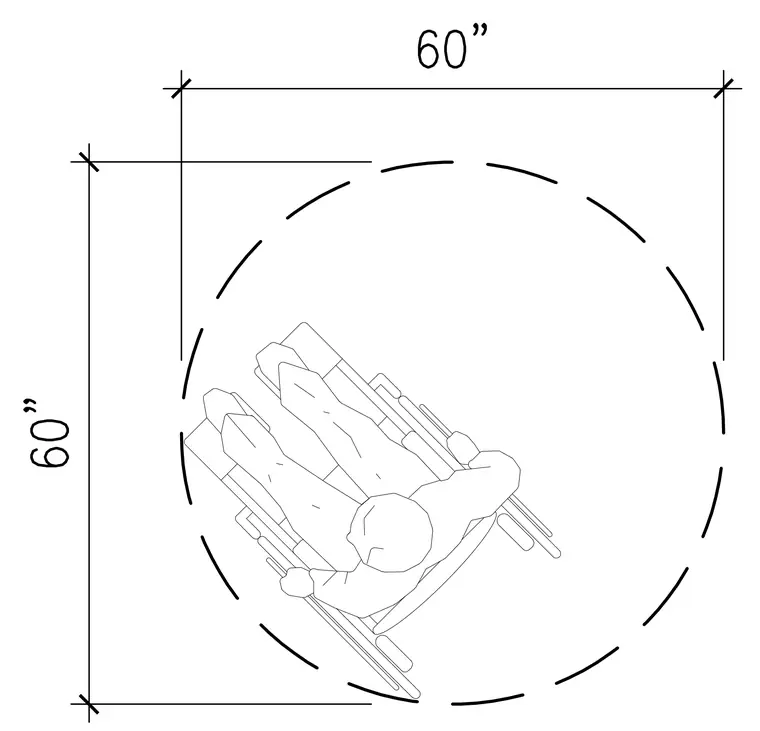

The layout shows a sixty-inch by sixty-inch circular turning space designed to accommodate a wheelchair user. Dimension lines indicate a clear diameter of sixty inches in both orthogonal directions.
