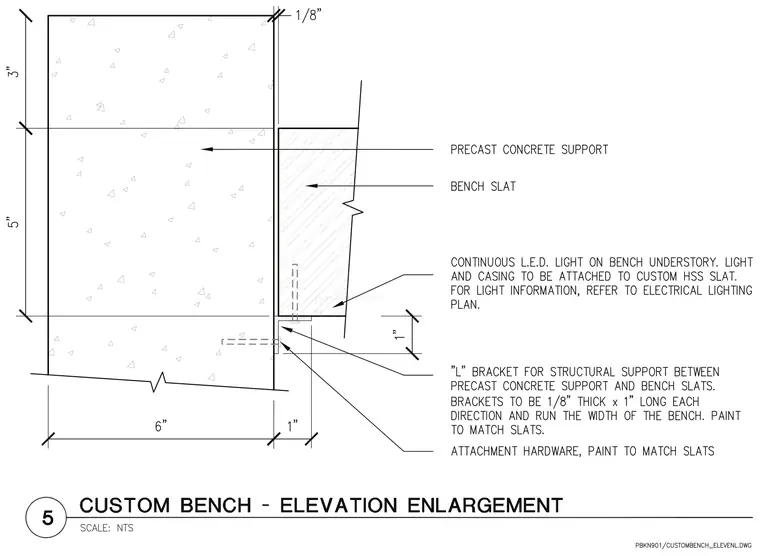

A custom bench slat bears on a precast concrete wall and is secured with structural steel angle brackets. The bench slat aligns with a continuous light-emitting diode light fixture attached underneath, with electrical specifications referenced on the lighting plan. The L-shaped structural bracket measures 1/8 inch thick by 1 inch long, spans the width of the bench, and is painted to match the slats. Attachment hardware secures the bracket to both the precast concrete support and the bench slats.
