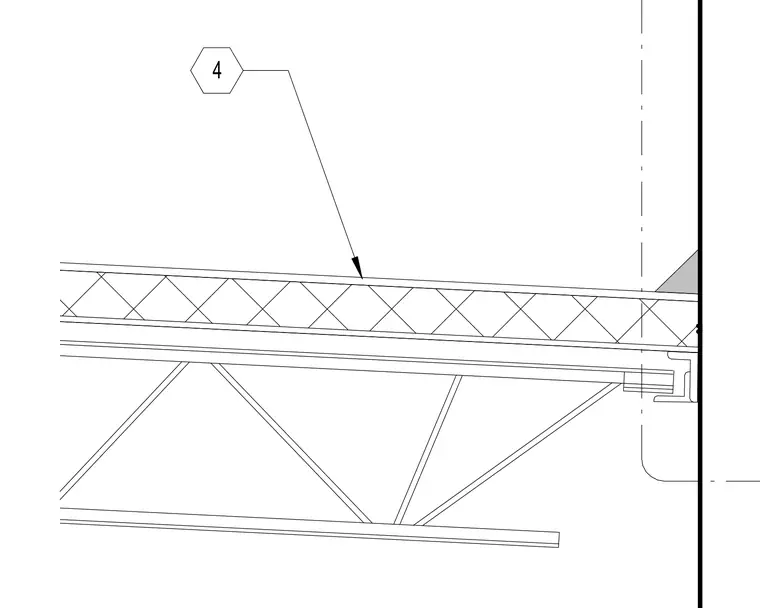

A roof truss bears upon a support integrated into a vertical wall assembly. A detail reference bubble labeled four points to the upper chord of the truss. The truss chord intersects the wall bearing condition where a support angle or track is anchored. Additional structural framing components sit below the primary truss.
