Text on the drawing

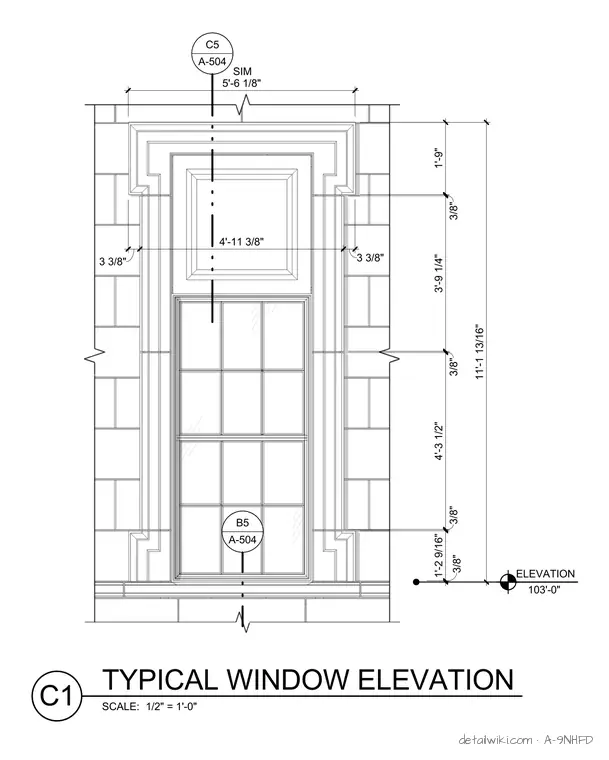

C5 A-504 SIM B5 A-504 1'-9" 3/8" 3'-9 1/4" 3/8" 4'-3 1/2" 3/8" 1'-2 9/16" 3/8" 11'-1 13/16" 3 3/8" 4'-11 3/8" 3 3/8" 5'-6 1/8" ELEVATION 103'-0" SCALE: 1/2" = 1'-0" C1 TYPICAL WINDOW ELEVATION
