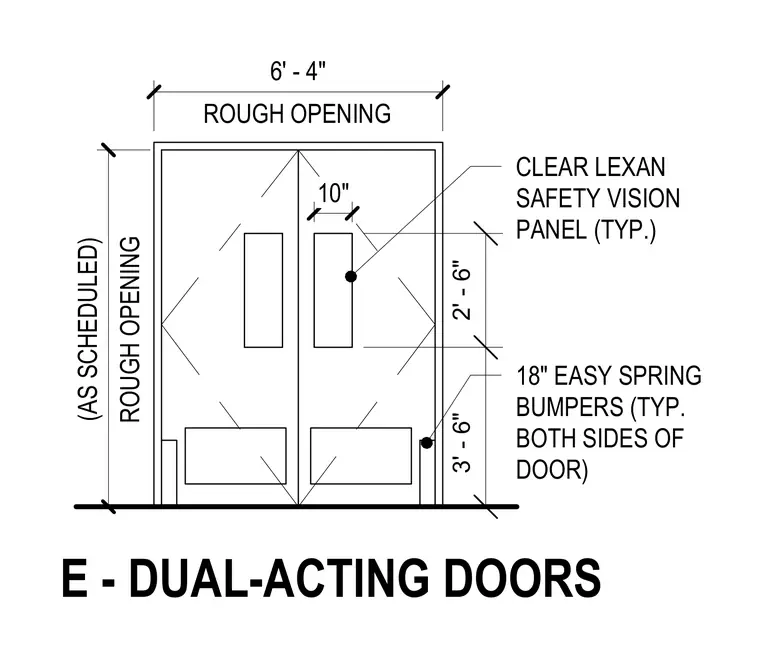

The dual-acting double doors fit within a rough opening measuring six feet four inches wide, with height as scheduled. Each door leaf includes a clear Lexan safety vision panel measuring ten inches wide by two feet six inches high, positioned ten inches from the edge. Eighteen-inch easy spring bumpers are installed on both sides of each door at three feet six inches from the floor.
ROUGH OPENING (AS SCHEDULED) ROUGH OPENING 6' - 4" E - DUAL-ACTING DOORS 10" 3' - 6" 2' - 6" CLEAR LEXAN SAFETY VISION PANEL (TYP.) 18" EASY SPRING BUMPERS (TYP. BOTH SIDES OF DOOR)
