A cable bundle penetrates a partition per plan through an optional four-inch minimum diameter steel sleeve. Firestopping sealant is applied flush with each end of the sleeve at a five-eighths inch minimum depth. A one-half inch diameter bead of fill material surrounds the sleeve perimeter on both sides of the wall when the sleeve extends beyond the wall surface. The assembly complies with UL listing W-L-3065, restricting cable fill to a maximum of forty-five percent of the opening cross-sectional area.

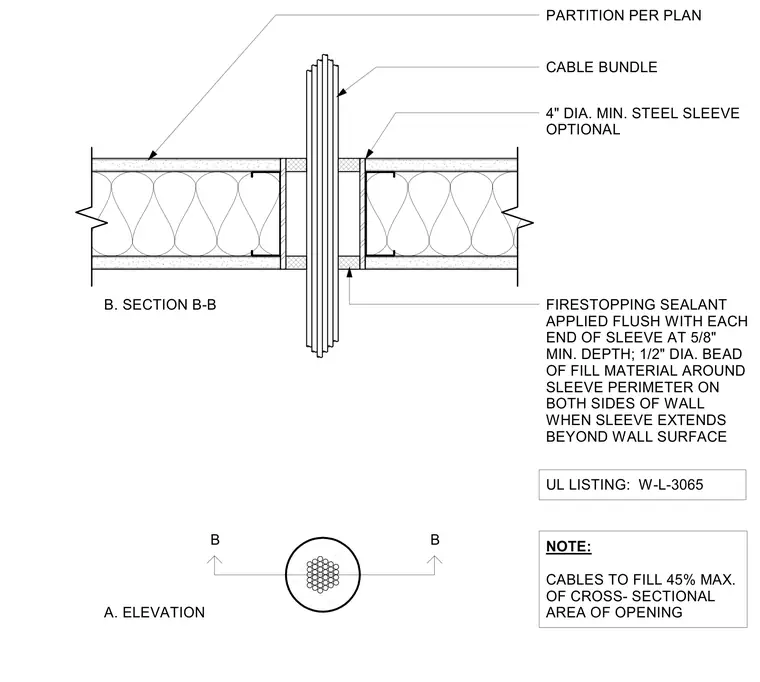

CABLE BUNDLE 4" DIA. MIN. STEEL SLEEVE OPTIONAL FIRESTOPPING SEALANT APPLIED FLUSH WITH EACH END OF SLEEVE AT 5/8" MIN. DEPTH; 1/2" DIA. BEAD OF FILL MATERIAL AROUND SLEEVE PERIMETER ON BOTH SIDES OF WALL WHEN SLEEVE EXTENDS BEYOND WALL SURFACE UL LISTING: W-L-3065 NOTE: CABLES TO FILL 45% MAX. OF CROSS- SECTIONAL AREA OF OPENING B. SECTION B-B A. ELEVATION B B PARTITION PER PLAN
