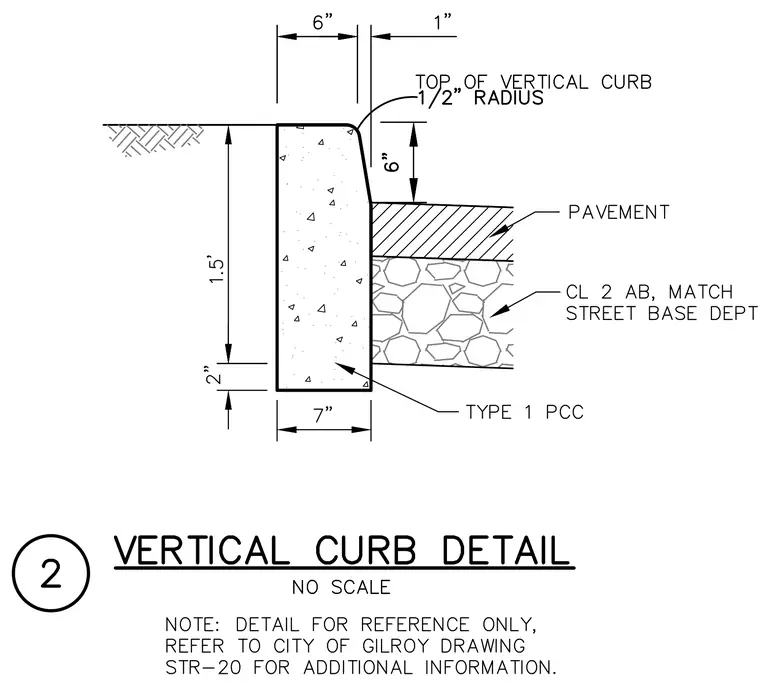

A Type 1 Portland cement concrete vertical curb features a seven-inch base width, a six-inch vertical face, and a one-half-inch radius top corner. The curb sits on a subgrade and bears alongside a pavement section over a Class 2 aggregate base, matching the street base depth. The overall height of the curb is one point five feet with a two-inch reveal below the pavement line. A note refers to City of Gilroy drawing STR-20 for additional information.
