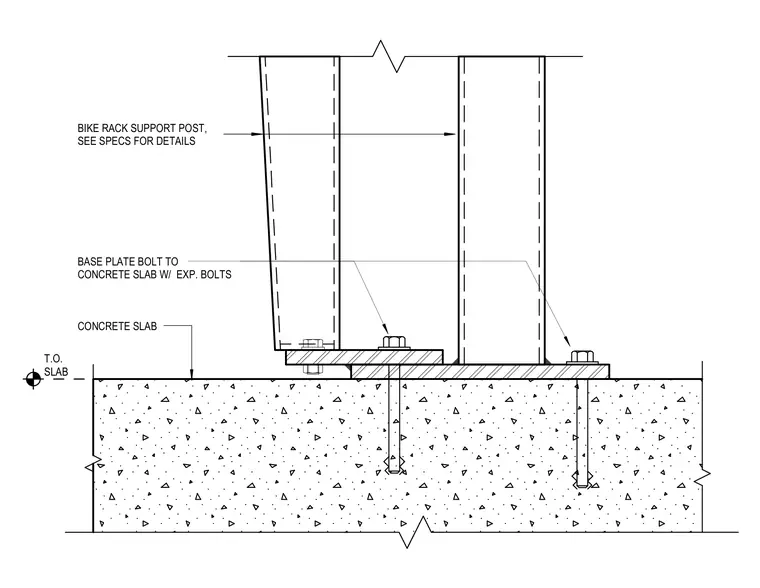

The bike rack support post is welded to a steel base plate that bears directly on the top of the concrete slab. The base plate is secured to the concrete using expansion bolts anchored into the slab per structural specifications.
CONCRETE SLAB BIKE RACK SUPPORT POST, SEE SPECS FOR DETAILS T.O. SLAB BASE PLATE BOLT TO CONCRETE SLAB W/ EXP. BOLTS
