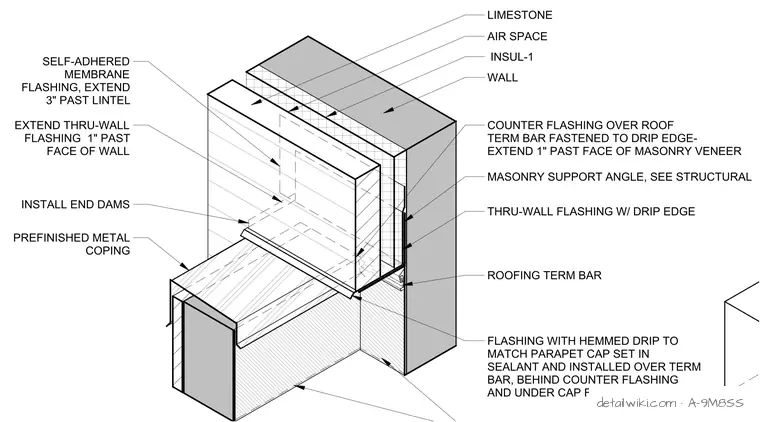

A masonry support angle anchored to the wall structure supports a limestone veneer with an air space and insulation layer. A self-adhered membrane extends three inches past the lintel, and thru-wall flashing with a drip edge extends one inch past the face of the masonry veneer. End dams at the flashing terminations manage water runoff. A roofing termination bar is fastened to the drip edge, and counter flashing is installed over the roof membrane. A prefinished metal coping caps the parapet, with a hemmed drip edge flashing set in sealant over the termination bar, positioned behind the counter flashing and under the cap flashing.
