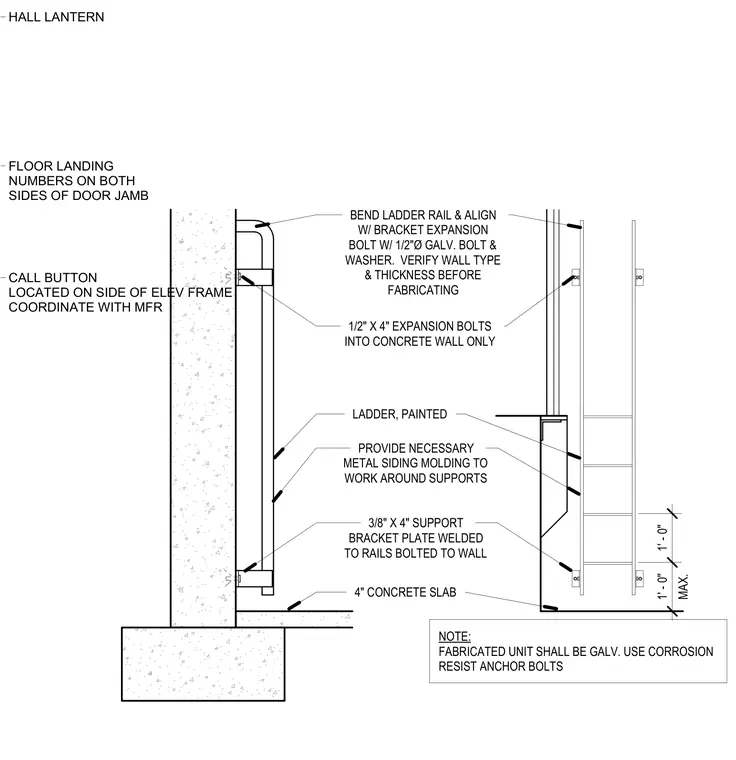

An elevator pit ladder is anchored to a concrete wall using three-eighths by four-inch support bracket plates welded to the ladder rails and bolted to the concrete. One-half by four-inch expansion bolts secure the brackets into the concrete wall only, using one-half inch diameter galvanized bolts and washers. The ladder rails are bent and aligned with the brackets, requiring field verification of wall type and thickness prior to fabrication. The fabricated unit is galvanized and includes necessary metal siding molding to work around supports above a four-inch concrete slab.
NOTE: FABRICATED UNIT SHALL BE GALV. USE CORROSION RESIST ANCHOR BOLTS 4" CONCRETE SLAB PROVIDE NECESSARY METAL SIDING MOLDING TO WORK AROUND SUPPORTS LADDER, PAINTED 3/8" X 4" SUPPORT BRACKET PLATE WELDED TO RAILS BOLTED TO WALL 1/2" X 4" EXPANSION BOLTS INTO CONCRETE WALL ONLY BEND LADDER RAIL & ALIGN W/ BRACKET EXPANSION BOLT W/ 1/2"Ø GALV. BOLT & WASHER. VERIFY WALL TYPE & THICKNESS BEFORE FABRICATING MAX. 1' - 0" 1' - 0" CALL BUTTON LOCATED ON SIDE OF ELEV FRAME COORDINATE WITH MFR HALL LANTERN FLOOR LANDING NUMBERS ON BOTH SIDES OF DOOR JAMB
