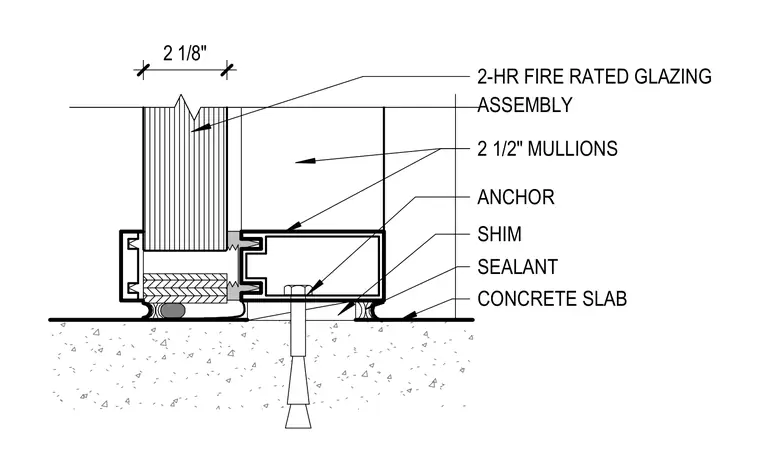

A two-hour fire-rated glazing assembly bears upon a concrete slab, secured by anchors through two-and-a-half-inch mullions. Shims provide leveling between the mullion base and the structural slab. Sealant beads seal the perimeter joints at the concrete interface.
2 1/2" MULLIONS SHIM ANCHOR CONCRETE SLAB 2-HR FIRE RATED GLAZING ASSEMBLY SEALANT 2 1/8"
