Typical Interior Hollow Metal Door Head

Materials

Elements

Beams Walls Doors Floors / Slabs Insulation

About this detail

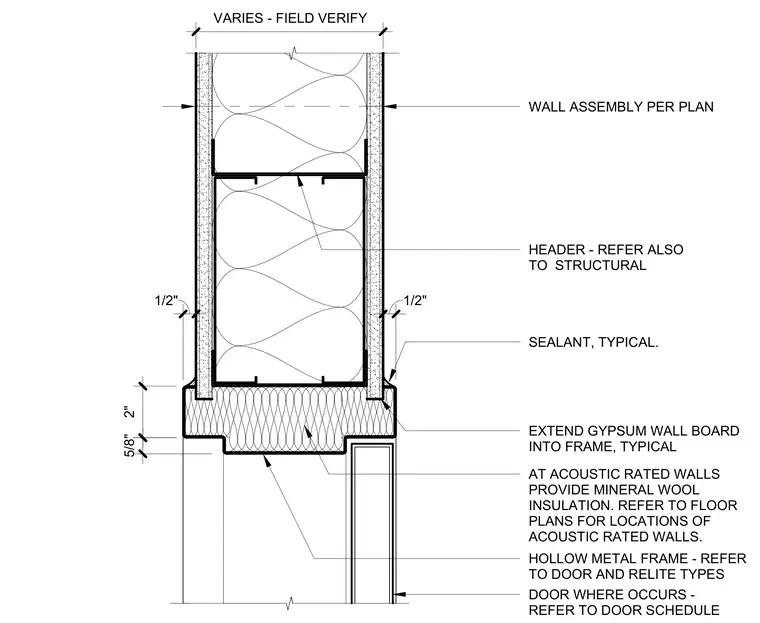

This interior door head detail shows a hollow metal frame set within a wall assembly per plan, featuring a header coordinated with structural requirements. Gypsum wall board extends into the frame with typical joint clearances, finished with sealant at the frame perimeter. Mineral wool insulation is provided at acoustic-rated walls, and the door itself is installed per the door schedule. Dimensions include a varying field-verified wall width, 2-inch and 5/8-inch vertical dimensions, and 1/2-inch gaps.
