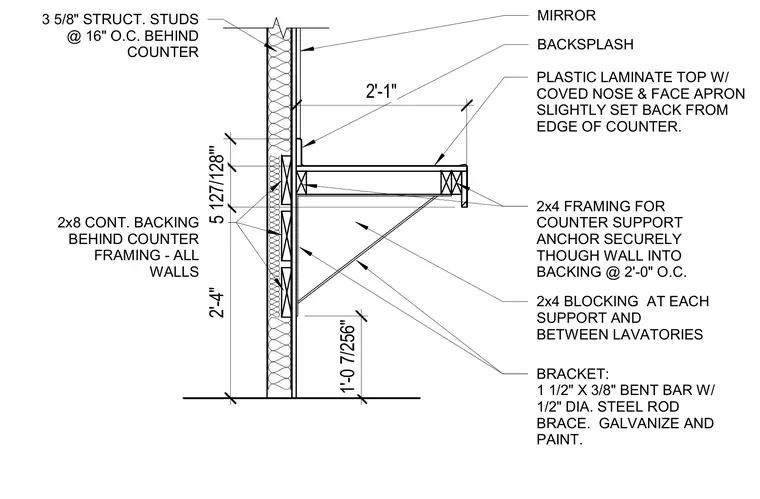

A plastic laminate countertop with a coved nose and face apron is supported by two-by-four wood framing and anchored to a wall of three-and-five-eighths-inch structural studs at sixteen inches on center. Continuous two-by-eight wood backing is installed behind the counter framing across all walls, supplemented by two-by-four blocking at each support and between lavatories. The counter load is transferred to the wall framing via a galvanized and painted bracket constructed from a one-and-one-half-inch by three-eighths-inch bent bar with a one-half-inch diameter steel rod brace, secured through the wall into the backing at two feet on center. Above the counter, a backsplash meets a mirror mounted on the wall face.
3 5/8" STRUCT. STUDS @ 16" O.C. BEHIND COUNTER 2x8 CONT. BACKING BEHIND COUNTER FRAMING - ALL WALLS 2x4 BLOCKING AT EACH SUPPORT AND BETWEEN LAVATORIES BRACKET: 1 1/2" X 3/8" BENT BAR W/ 1/2" DIA. STEEL ROD BRACE. GALVANIZE AND PAINT. 2x4 FRAMING FOR COUNTER SUPPORT ANCHOR SECURELY THOUGH WALL INTO BACKING @ 2'-0" O.C. PLASTIC LAMINATE TOP W/ COVED NOSE & FACE APRON SLIGHTLY SET BACK FROM EDGE OF COUNTER. BACKSPLASH MIRROR 2'-1" 4" 5 127/128" 2'-4" 1'-0 7/256"
