Signage details include raised characters two inches tall by one thirty-second of an inch high with Grade 2 Braille text below. The exit sign is positioned with the bottom of the highest line of raised characters at a maximum of sixty inches above finished floor and five and one half inches wide typical. The exit route sign measures six inches wide by five inches tall with the base line of the lowest braille cells at a minimum of forty eight inches above finished floor.

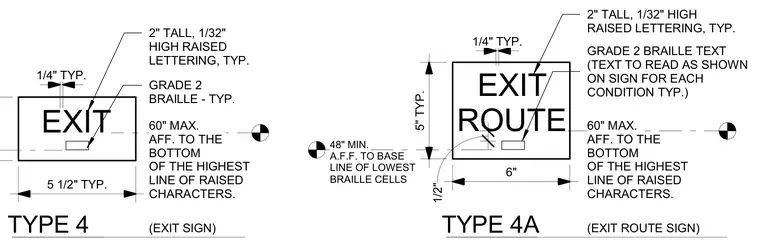

TYPE 4 TYPE 4A EXIT GRADE 2 BRAILLE - TYP. 1/4" TYP. 2" TALL, 1/32" HIGH RAISED LETTERING, TYP. (EXIT SIGN) 5 1/2" TYP. 60" MAX. AFF. TO THE BOTTOM OF THE HIGHEST LINE OF RAISED CHARACTERS. (EXIT ROUTE SIGN) EXIT ROUTE GRADE 2 BRAILLE TEXT (TEXT TO READ AS SHOWN ON SIGN FOR EACH CONDITION TYP.) 1/4" TYP. 2" TALL, 1/32" HIGH RAISED LETTERING, TYP. 5" TYP. 6" 1/2" 48" MIN. A.F.F. TO BASE LINE OF LOWEST BRAILLE CELLS 60" MAX. AFF. TO THE BOTTOM OF THE HIGHEST LINE OF RAISED CHARACTERS.
