Platform Edge Detail at Concrete Slab and Millwork

Materials

Concrete Steel

Elements

Columns Floors / Slabs Decks Insulation Millwork / Casework Anchors / Embeds Connections / Plates

Connections

Shear Stud / Composite Embed Plate

About this detail

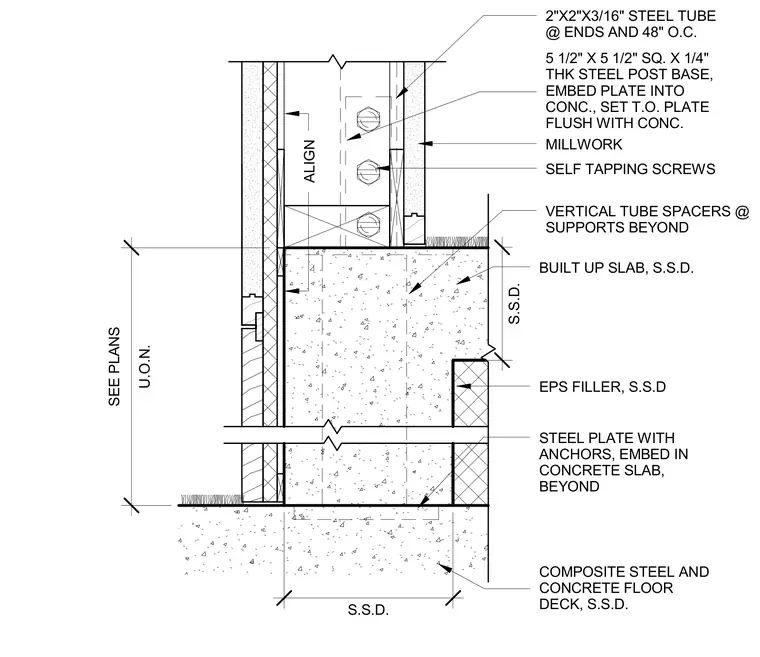

A built-up concrete slab supports a platform edge with an embedded steel plate and expanded polystyrene filler. A square steel post base measuring 5 1/2 inches by 5 1/2 inches by 1/4 inch thick is set flush with the concrete. A 2-inch by 2-inch by 3/16-inch hollow structural section steel tube runs vertically at ends and 48 inches on center, secured with self-tapping screws behind millwork casework. Vertical tube spacers are placed at supports beyond, and a composite steel and concrete floor deck forms the base assembly.
