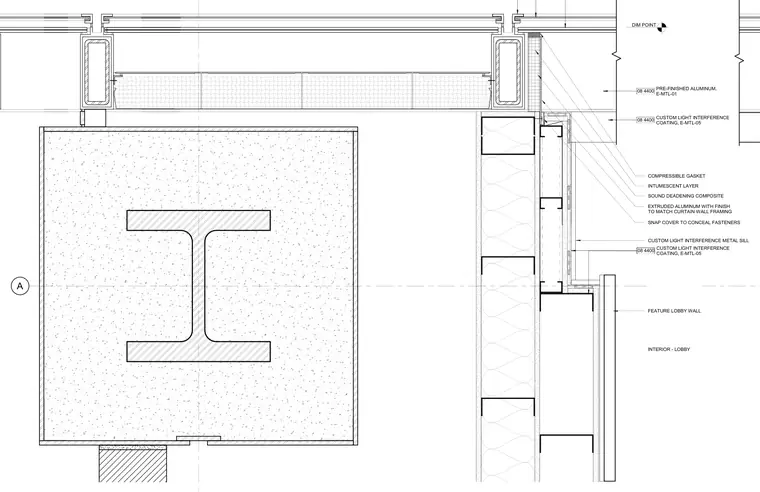

A custom light interference metal sill assembly transitions at the interior lobby wall condition. The assembly features an extruded aluminum profile finished to match the curtain wall framing, incorporating a snap cover to conceal fasteners. A compressible gasket and intumscent layer sit adjacent to a sound deadening composite material. Pre-finished aluminum and custom light interference coatings complete the perimeter finish.
A DIM POINT INTERIOR - LOBBY FEATURE LOBBY WALL COMPRESSIBLE GASKET INTUMESCENT LAYER SOUND DEADENING COMPOSITE EXTRUDED ALUMINUM WITH FINISH TO MATCH CURTAIN WALL FRAMING SNAP COVER TO CONCEAL FASTENERS 08 4400 PRE-FINISHED ALUMINUM, E-MTL-01 08 4400 CUSTOM LIGHT INTERFERENCE COATING, E-MTL-05 08 4400 CUSTOM LIGHT INTERFERENCE COATING, E-MTL-05 08 4400 CUSTOM LIGHT INTERFERENCE COATING, E-MTL-05 CUSTOM LIGHT INTERFERENCE METAL SILL
