Architectural · A-9JW2P

Premolded Pipe Flashing

Materials

Concrete Reinforced Concrete Steel Stainless Steel Timber / Wood

Elements

Roofs Decks Waterproofing / Flashing Connections / Plates Reinforcing

Connections

Welded Connection Rebar Splice / Development Deck Attachment

About this detail

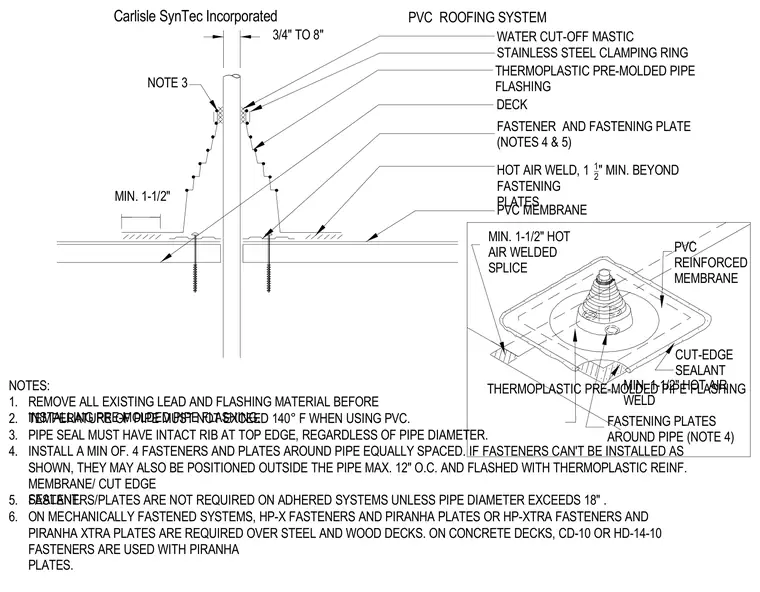

A thermoplastic pre-molded pipe flashing installs over a PVC roof membrane and deck penetration. A stainless steel clamping ring secures the top of the boot around the pipe with water cut-off mastic. Fastening plates and mechanical fasteners anchor the base flange to the deck, set between three-quarters of an inch to eight inches minimum from the pipe. A hot-air weld secures the PVC reinforced membrane over the flange, extending a minimum of one and a half inches beyond the fastening plates with cut-edge sealant applied.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
