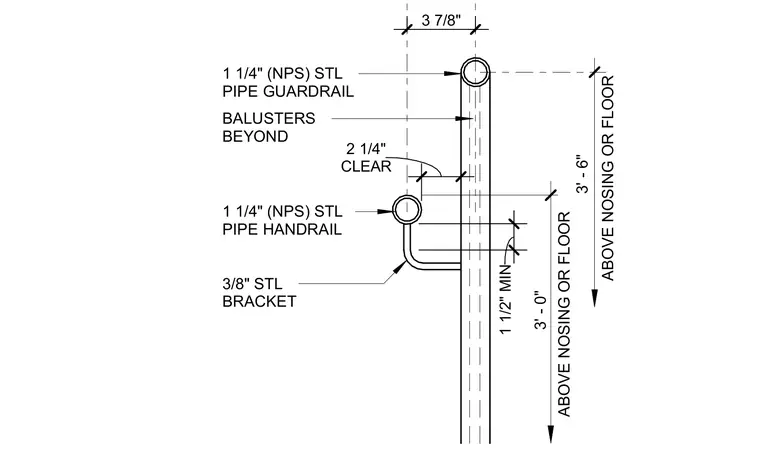

A one-and-a-quarter-inch nominal pipe size steel pipe handrail is mounted to a three-eighths-inch steel bracket, maintaining a two-and-a-quarter-inch clear distance from the balusters beyond. The top of the handrail is positioned three feet zero inches above the nosing or floor, with a minimum clearance of one-and-a-half inches below. The one-and-a-quarter-inch nominal pipe size steel pipe guardrail is set at three feet six inches above the nosing or floor, centered three-and-seven-eighths inches from the baluster line.
CLEAR 2 1/4" 3/8" STL BRACKET BALUSTERS BEYOND 3' - 0" ABOVE NOSING OR FLOOR ABOVE NOSING OR FLOOR 3' - 6" 1 1/4" (NPS) STL PIPE HANDRAIL 1 1/4" (NPS) STL PIPE GUARDRAIL 1 1/2" MIN 3 7/8"
