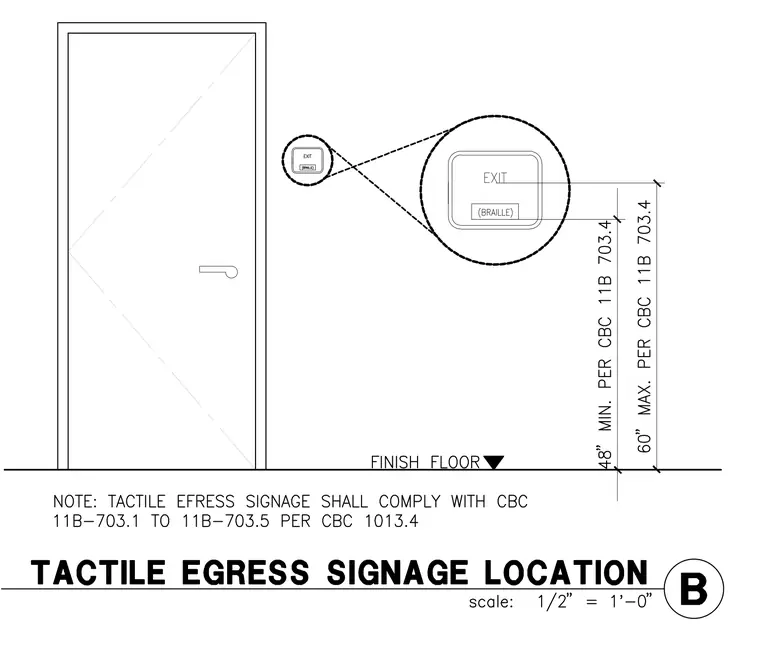

Tactile egress signage with raised text and braille is mounted on the wall adjacent to a door, complying with California Building Code requirements. The centerline of the sign is dimensioned to be installed between a minimum height of 48 inches and a maximum height of 60 inches above the finish floor level per CBC 11B-703.4 and CBC 1013.4.
