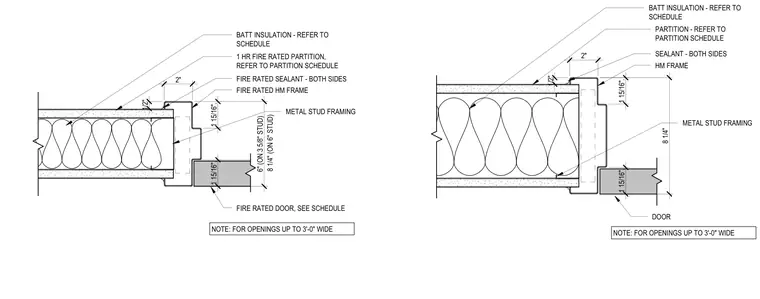

A one-hour fire-rated hollow metal door jamb is set within a metal stud partition. The assembly includes cold-formed metal stud framing, batt insulation sized per the partition schedule, and fire-rated sealant applied to both sides of the frame. The hollow metal frame accommodates openings up to three feet wide and interfaces with a fire-rated door and gypsum board wall finishes.
BATT INSULATION - REFER TO SCHEDULE PARTITION - REFER TO PARTITION SCHEDULE METAL STUD FRAMING SEALANT - BOTH SIDES HM FRAME DOOR NOTE: FOR OPENINGS UP TO 3'-0" WIDE 2" 1/2" 1 15/16". 1 15/16". 8 1/4" BATT INSULATION - REFER TO SCHEDULE 1 HR FIRE RATED PARTITION, REFER TO PARTITION SCHEDULE METAL STUD FRAMING FIRE RATED SEALANT - BOTH SIDES FIRE RATED HM FRAME FIRE RATED DOOR, SEE SCHEDULE NOTE: FOR OPENINGS UP TO 3'-0" WIDE 6" (ON 3 5/8" STUD) 2" 1/2" 1 15/16". 1 15/16". 8 1/4" (ON 6" STUD)
