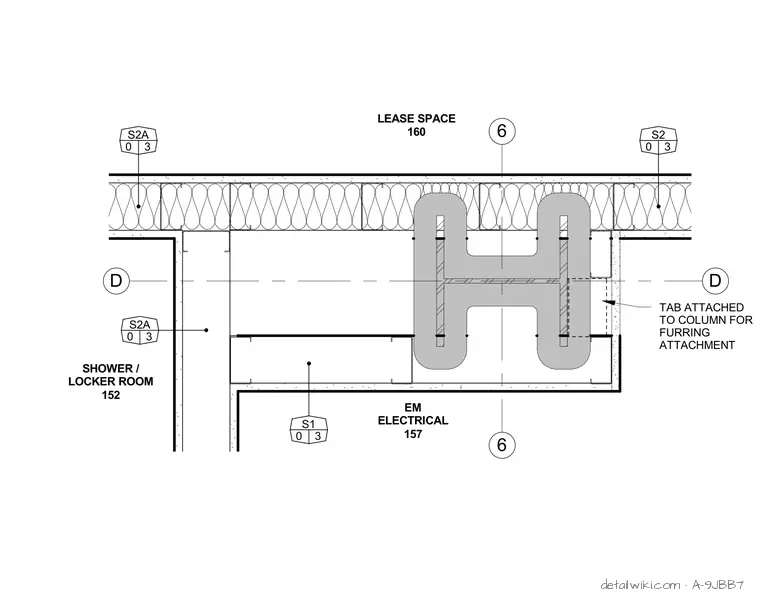

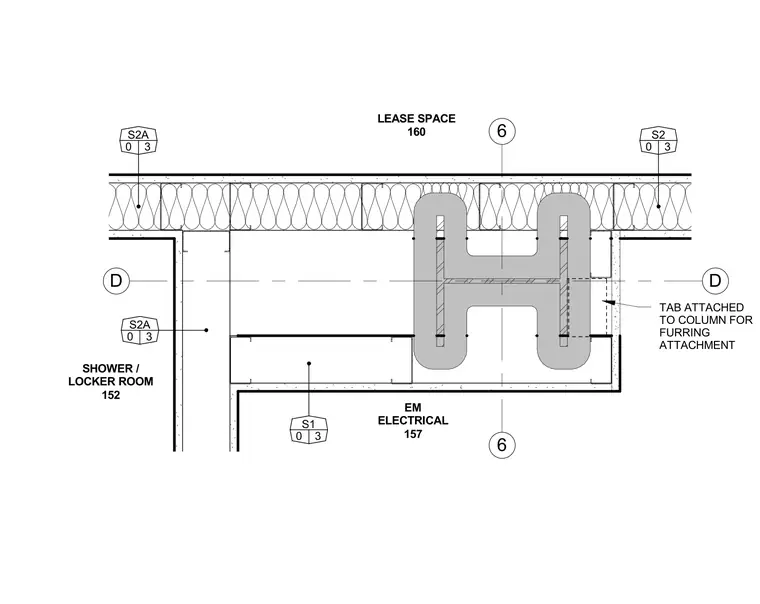

This structural steel column sits at the intersection of partition walls separating lease space 160, electrical room 157, and shower/locker room 152. A steel tab is attached to the column web for furring attachment to support the surrounding wall finish. The column profile is detailed with adjacent metal stud framing and drywall assemblies running continuously past the structural member.
D D 6 6 LEASE SPACE 160 EM ELECTRICAL 157 S2 0 3 SHOWER / LOCKER ROOM 152 TAB ATTACHED TO COLUMN FOR FURRING ATTACHMENT S1 0 3 S2A 0 3 S2A 0 3
