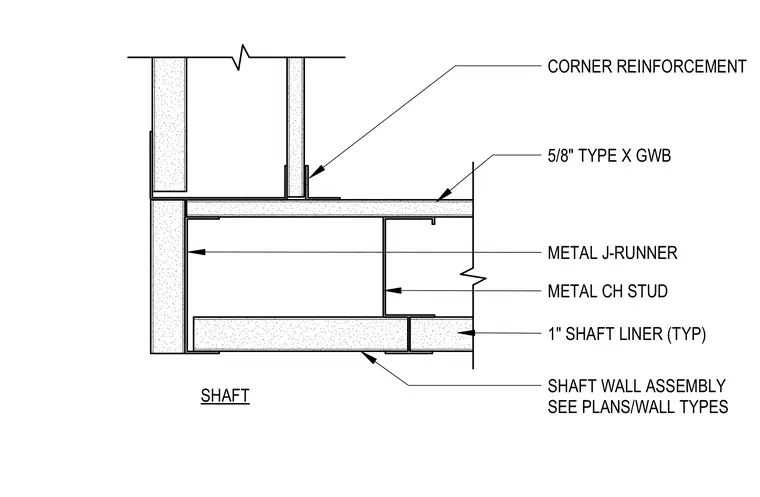

An inside corner assembly for a shaft wall comprises metal CH studs and metal J-runners with typical one-inch shaft liner panels. Layers of five-eighths-inch Type X gypsum wallboard finish the faces of the assembly. Corner reinforcement is applied at the internal junction to protect the edge and maintain the shaft enclosure integrity.
SHAFT WALL ASSEMBLY SEE PLANS/WALL TYPES SHAFT 1" SHAFT LINER (TYP) METAL CH STUD 5/8" TYPE X GWB METAL J-RUNNER CORNER REINFORCEMENT
