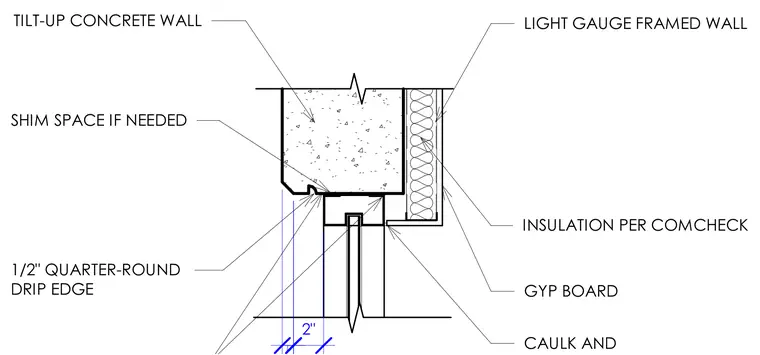

A light gauge framed wall abuts a tilt-up concrete wall with a designated shim space provided if needed. Insulation is installed per ComCheck requirements within the wall cavity, backed by gypsum board. A one-half-inch quarter-round drip edge is formed in the concrete panel. Caulking and sealant are applied at the wall junction to maintain weather tightness.
SHIM SPACE IF NEEDED TILT-UP CONCRETE WALL CAULK AND LIGHT GAUGE FRAMED WALL GYP BOARD INSULATION PER COMCHECK 1/2" QUARTER-ROUND DRIP EDGE 2"
