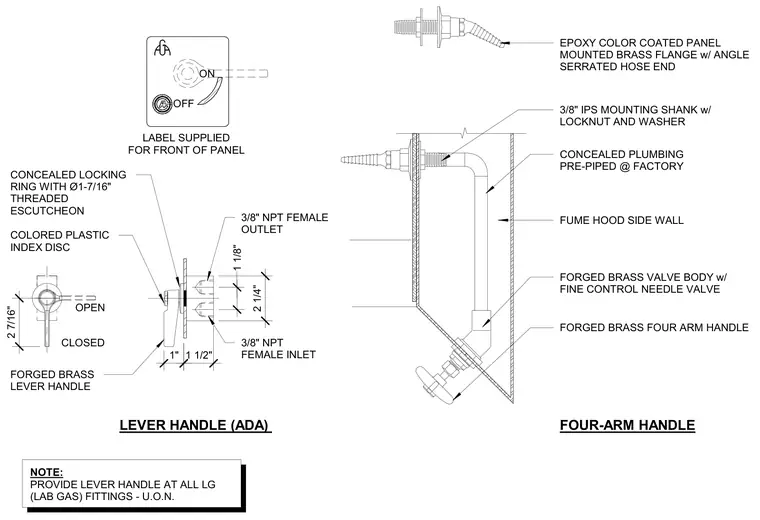

A panel-mounted laboratory gas valve assembly features a forged brass lever handle with a colored plastic index disc, a concealed locking ring with a 1-7/16-inch threaded escutcheon, and a label supplied for the front of the panel. The mounting system utilizes a 3/8-inch iron pipe size mounting shank secured with a locknut and washer through the fume hood side wall. Pre-piped concealed plumbing connects to a forged brass valve body containing a fine control needle valve and a four-arm handle. An epoxy color-coated panel-mounted brass flange with an angle serrated hose end completes the exterior connection. A note specifies providing lever handles at all laboratory gas fittings unless otherwise noted.
OFF ON LABEL SUPPLIED FOR FRONT OF PANEL LEVER HANDLE (ADA) 2 7/16" OPEN CLOSED 1" 1 1/2" 1 1/8" 3/8" NPT FEMALE OUTLET 3/8" NPT FEMALE INLET 2 1/4" CONCEALED LOCKING RING WITH Ø1-7/16" THREADED ESCUTCHEON FORGED BRASS LEVER HANDLE COLORED PLASTIC INDEX DISC 3/8" IPS MOUNTING SHANK w/ LOCKNUT AND WASHER FORGED BRASS VALVE BODY w/ FINE CONTROL NEEDLE VALVE FORGED BRASS FOUR ARM HANDLE FUME HOOD SIDE WALL CONCEALED PLUMBING PRE-PIPED @ FACTORY FOUR-ARM HANDLE EPOXY COLOR COATED PANEL MOUNTED BRASS FLANGE w/ ANGLE SERRATED HOSE END NOTE: PROVIDE LEVER HANDLE AT ALL LG (LAB GAS) FITTINGS - U.O.N.
