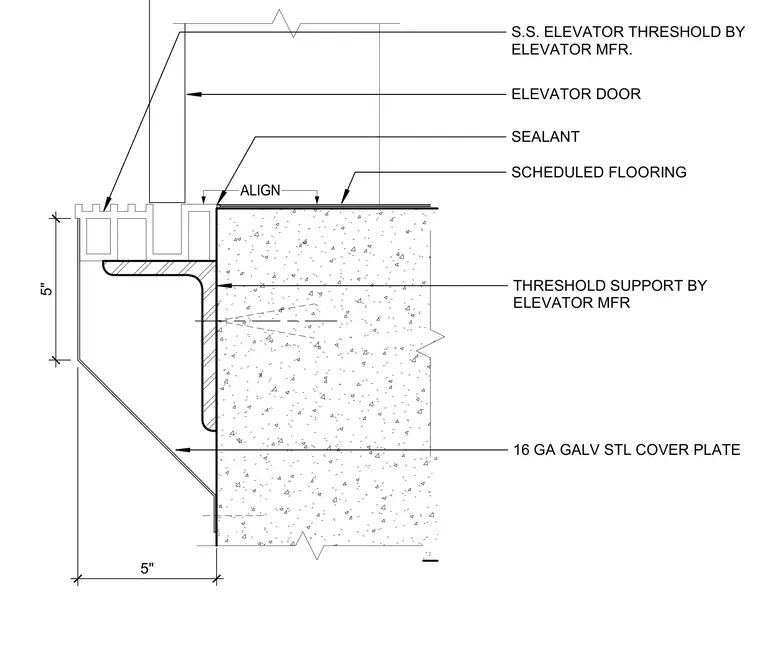

An 16-gauge galvanized steel cover plate wraps the exterior face below a stainless steel elevator threshold supplied by the manufacturer. The threshold and its structural support are provided by the elevator manufacturer, aligning flush with the scheduled flooring finish. A bead of sealant seals the joint between the threshold assembly and the adjacent floor slab.
16 GA GALV STL COVER PLATE ELEVATOR DOOR S.S. ELEVATOR THRESHOLD BY ELEVATOR MFR. THRESHOLD SUPPORT BY ELEVATOR MFR SEALANT 5" 5" SCHEDULED FLOORING ALIGN
