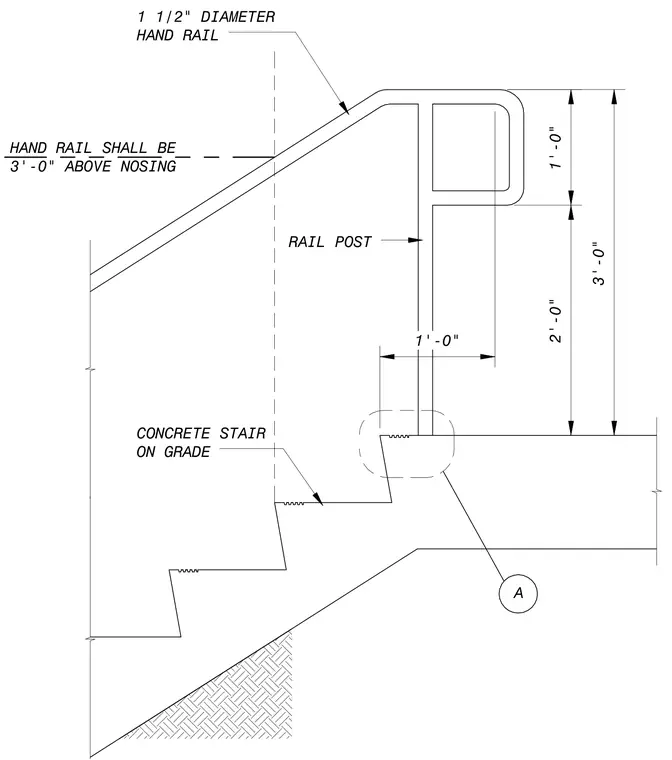

The assembly features a concrete stair on grade with a 1 1/2 inch diameter handrail supported by vertical rail posts. The top of the handrail is positioned 3 feet 0 inches above the stair nosing. Rail posts are anchored into the concrete stair structure at specified intervals.
3'-0" A 2'-0" 1'-0" 1'-0" HAND RAIL SHALL BE 3'-0" ABOVE NOSING 1 1/2" DIAMETER HAND RAIL RAIL POST CONCRETE STAIR ON GRADE i
