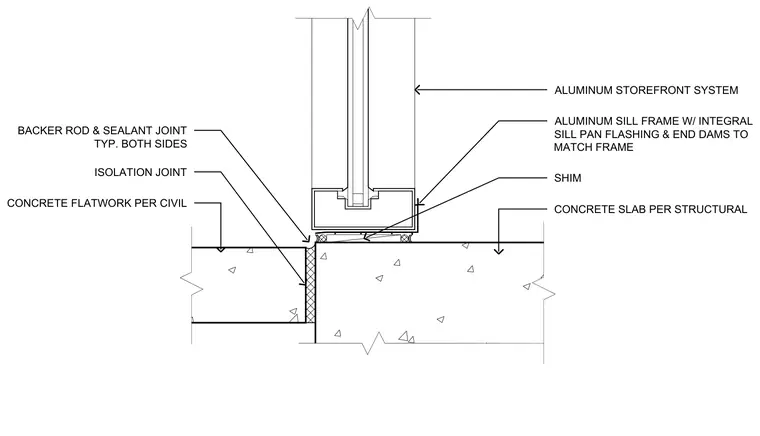

An aluminum storefront system rests on a concrete slab and is leveled with shims beneath the sill frame. The aluminum sill frame incorporates integral sill pan flashing and end dams matching the frame profile. A backer rod and sealant joint seals the exterior perimeter. An isolation joint separates the structural concrete slab from the adjacent concrete flatwork.
ALUMINUM STOREFRONT SYSTEM ALUMINUM SILL FRAME W/ INTEGRAL SILL PAN FLASHING & END DAMS TO MATCH FRAME SHIM CONCRETE SLAB PER STRUCTURAL BACKER ROD & SEALANT JOINT TYP. BOTH SIDES ISOLATION JOINT CONCRETE FLATWORK PER CIVIL
