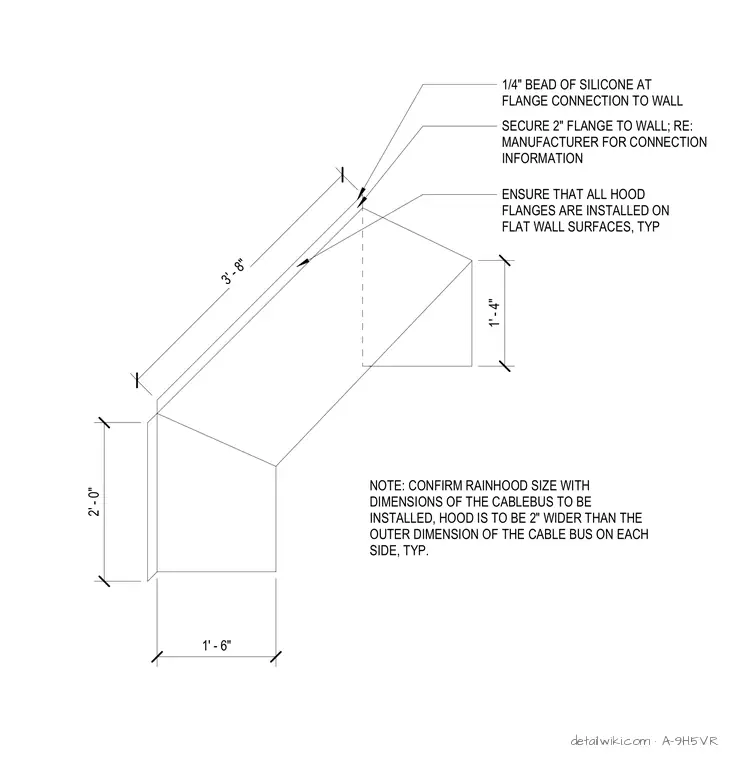

This assembly consists of a twenty-gauge galvanized steel rain hood designed to protect cablebus wall penetrations. The hood features a two-inch flange that must be secured to a flat wall surface, with the specific connection method determined by the manufacturer. A one-quarter-inch bead of silicone sealant is applied at the flange-to-wall interface to ensure a weather-tight seal. The hood dimensions must be verified against the cablebus, requiring a two-inch clearance wider than the outer dimension of the cablebus on each side.
Text on the drawing
1' - 6" 2' - 0" 1' - 4" 3' - 8" 1/4" BEAD OF SILICONE AT FLANGE CONNECTION TO WALL SECURE 2" FLANGE TO WALL; RE: MANUFACTURER FOR CONNECTION INFORMATION ENSURE THAT ALL HOOD FLANGES ARE INSTALLED ON FLAT WALL SURFACES, TYP NOTE: CONFIRM RAINHOOD SIZE WITH DIMENSIONS OF THE CABLEBUS TO BE INSTALLED, HOOD IS TO BE 2" WIDER THAN THE OUTER DIMENSION OF THE CABLE BUS ON EACH SIDE, TYP.
