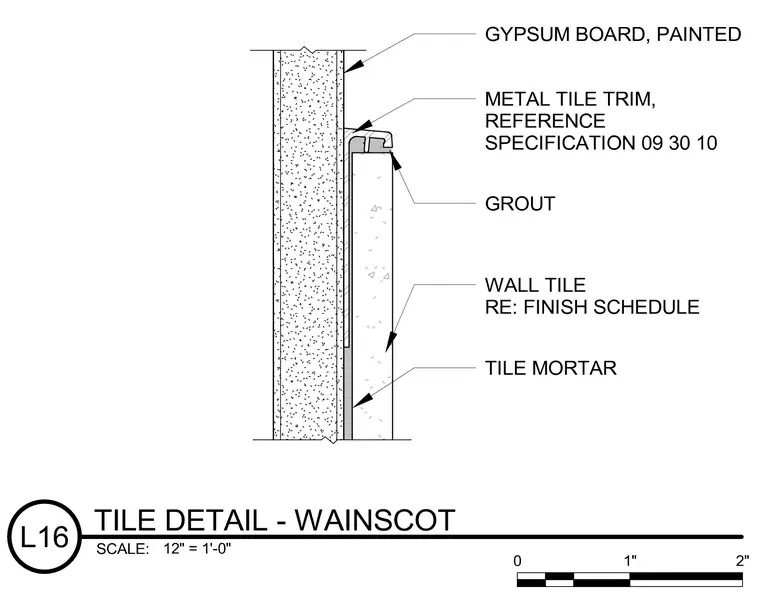

Painted gypsum board forms the vertical backing wall for the wainscot assembly. Wall tile is adhered to the substrate using tile mortar and finished with grout at the top edge. A metal tile trim piece caps the termination of the tile course, referencing specification section 09 30 10.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
