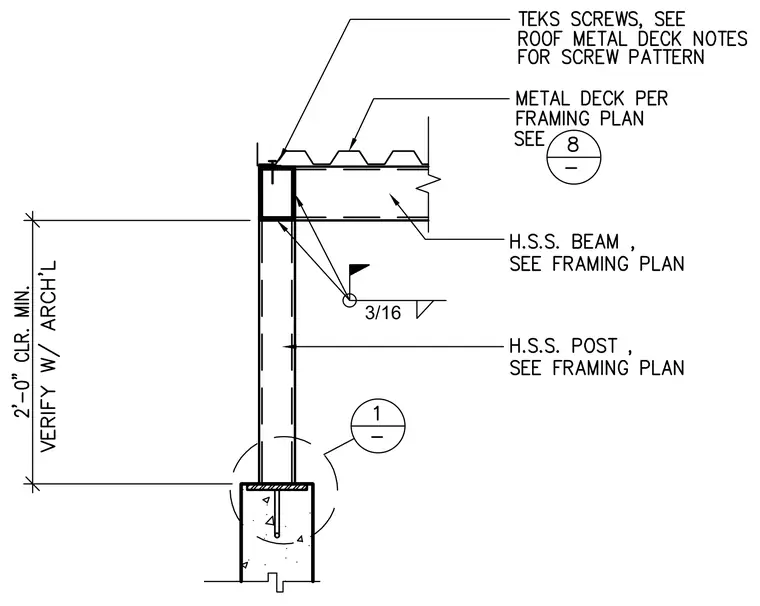

A hollow structural section beam bears on a hollow structural section post, which is secured to a concrete foundation below. The hollow structural section beam is capped with metal deck fastened using TEKS screws per the roof metal deck notes. A three-sixteenths inch weld connects the beam to the post assembly. A vertical clearance of two feet zero inches minimum is maintained and verified with architectural requirements.
