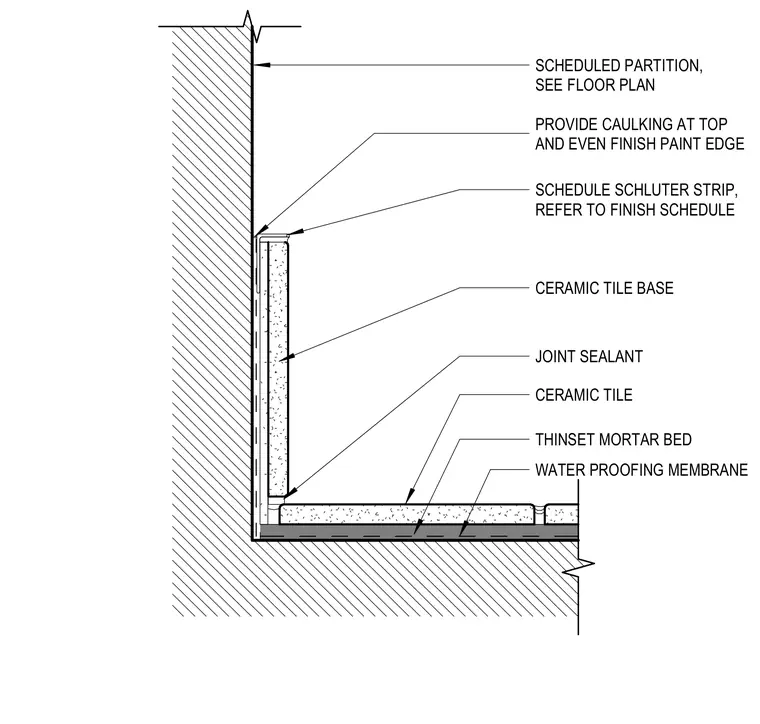

A ceramic tile floor assembly is installed over a waterproofing membrane and thinset mortar bed, meeting a vertical scheduled partition. A ceramic tile base transitions up the wall and is finished at the top with a Schluter strip edge profile, caulking, and an even finish paint edge. Joint sealant is provided at the internal corner between the tile floor and base.
SCHEDULED PARTITION, SEE FLOOR PLAN THINSET MORTAR BED WATER PROOFING MEMBRANE JOINT SEALANT SCHEDULE SCHLUTER STRIP, REFER TO FINISH SCHEDULE PROVIDE CAULKING AT TOP AND EVEN FINISH PAINT EDGE CERAMIC TILE CERAMIC TILE BASE
