A six-inch clad sheet metal through-wall scupper penetrates the exterior wall assembly, featuring crimped collar edges embedded in typical sealant. The roofing membrane wraps into the opening and is heat-welded directly to the thermoplastic polyolefin-clad scupper. Continuous collar flashing surrounds the scupper, lapping with the membrane and heat-welded over it. Self-adhered flashing and exterior wall finishes are detailed per floor plans, directing drainage into an exterior downspout via the scupper box.

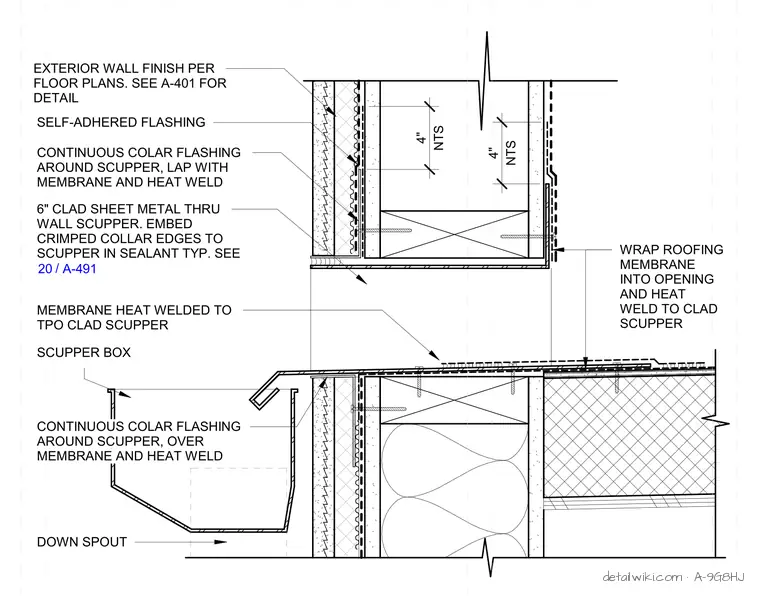

6" CLAD SHEET METAL THRU WALL SCUPPER. EMBED CRIMPED COLLAR EDGES TO SCUPPER IN SEALANT TYP. SEE CONTINUOUS COLAR FLASHING AROUND SCUPPER, LAP WITH MEMBRANE AND HEAT WELD MEMBRANE HEAT WELDED TO TPO CLAD SCUPPER WRAP ROOFING MEMBRANE INTO OPENING AND HEAT WELD TO CLAD SCUPPER SCUPPER BOX DOWN SPOUT CONTINUOUS COLAR FLASHING AROUND SCUPPER, OVER MEMBRANE AND HEAT WELD EXTERIOR WALL FINISH PER FLOOR PLANS. SEE A-401 FOR DETAIL NTS 4" SELF-ADHERED FLASHING NTS 4" / 20 A-491
