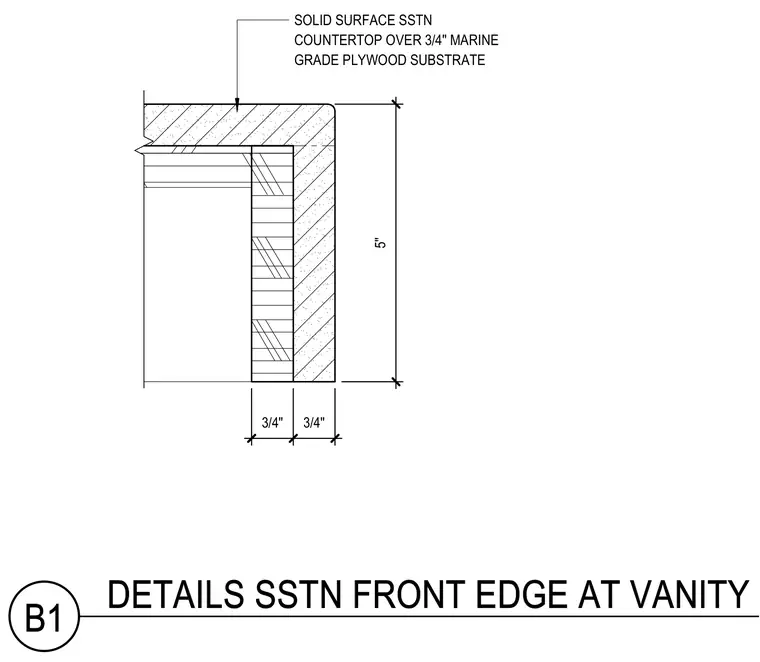

A solid surface stone countertop is supported over a three-quarter-inch marine grade plywood substrate. The built-out front edge profile features a five-inch vertical drop face framed with three-quarter-inch plywood blocking and finished with the solid surface material. Dimensions indicate a three-quarter-inch thickness for both the horizontal substrate and the vertical edge return.
5" 3/4" 3/4" SOLID SURFACE SSTN COUNTERTOP OVER 3/4" MARINE GRADE PLYWOOD SUBSTRATE B1 DETAILS SSTN FRONT EDGE AT VANITY
