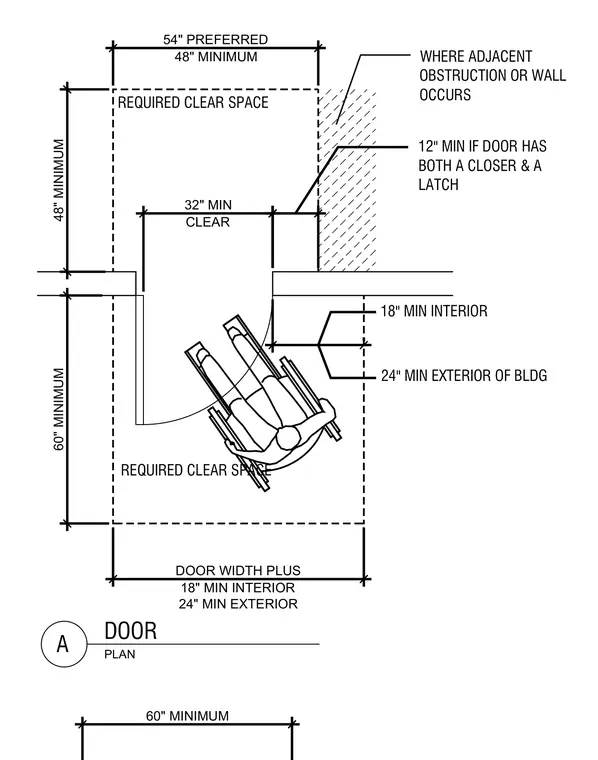

This accessibility plan details the required clear floor space and maneuvering clearances for a door, showing approach dimensions for both interior and exterior conditions. The drawing specifies a minimum thirty-two inch clear opening width with sixty inches minimum depth on the pull side and forty-eight inches minimum on the push side. Additional clearance is indicated for doors with both a closer and a latch when an adjacent obstruction or wall occurs. The layout outlines the required eighteen inches minimum interior clearance and twenty-four inches minimum exterior clearance beside the latch.
48" MINIMUM 60" MINIMUM DOOR WIDTH PLUS 18" MIN INTERIOR 24" MIN EXTERIOR 54" PREFERRED 48" MINIMUM 32" MIN CLEAR 24" MIN EXTERIOR OF BLDG 18" MIN INTERIOR REQUIRED CLEAR SPACE 12" MIN IF DOOR HAS BOTH A CLOSER & A LATCH WHERE ADJACENT OBSTRUCTION OR WALL OCCURS REQUIRED CLEAR SPACE A DOOR PLAN 60" MINIMUM
