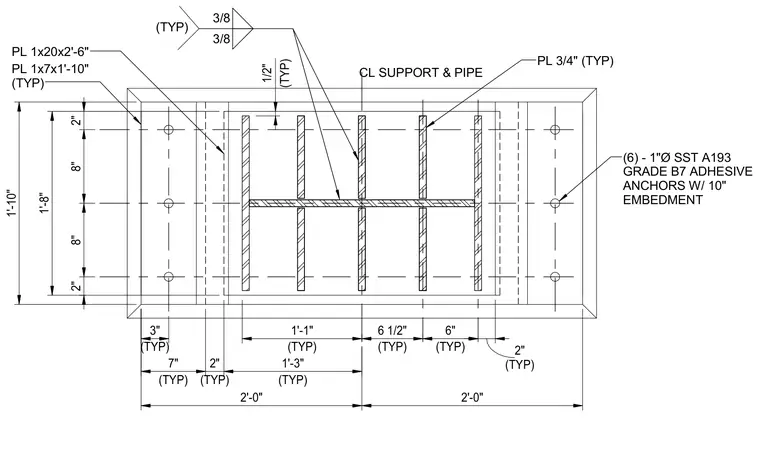

An embed plate measuring 1 inch by 20 inches by 2 feet 6 inches is secured by six 1-inch diameter stainless steel ASTM A193 Grade B7 adhesive anchors with a 10-inch embedment. Three-quarter-inch plates and 1-inch by 7-inch by 1-foot 10-inch plates serve as stiffeners welded to the assembly with three-eighth-inch fillet welds. The layout includes centerlines for pipe supports spaced across the plate with typical edge distances of 2 inches and 3 inches.
1'-8" 2'-0" 2'-0" (TYP) 1'-1" (TYP) 1'-3" (TYP) 2" (TYP) 7" CL SUPPORT & PIPE (TYP) 1/2" (TYP) 6" (TYP) 6 1/2" (TYP) 2" PL 3/4" (TYP) 2" 8" 8" 2" (6) - 1"Ø SST A193 GRADE B7 ADHESIVE ANCHORS W/ 10" EMBEDMENT 3/8 3/8 (TYP) PL 1x7x1'-10" (TYP) PL 1x20x2'-6" (TYP) 3" 1'-10"
