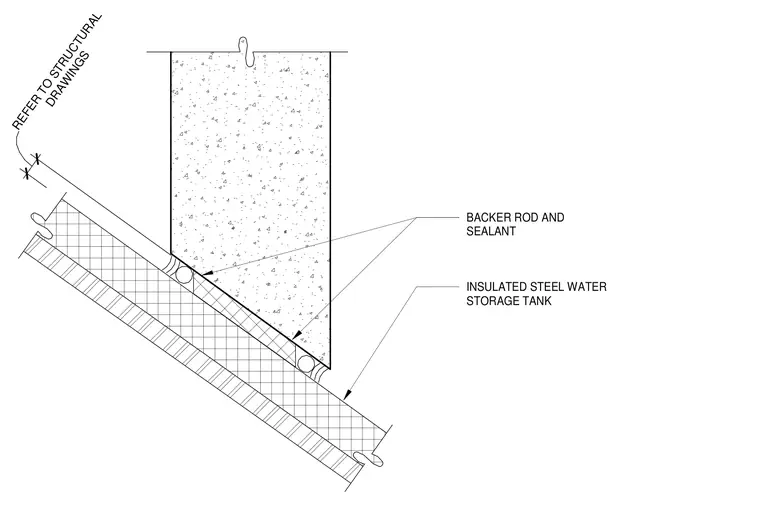

A concrete panel interfaces with an insulated steel water storage tank using backer rod and sealant at the joint interface. The joint configuration includes compressible backer rod sealed with flexible compound to maintain watertightness between the precast concrete element and the tank wall. Structural attachment details are deferred to structural engineering drawings.
BACKER ROD AND SEALANT INSULATED STEEL WATER STORAGE TANK DRAWINGS REFER TO STRUCTURAL
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
