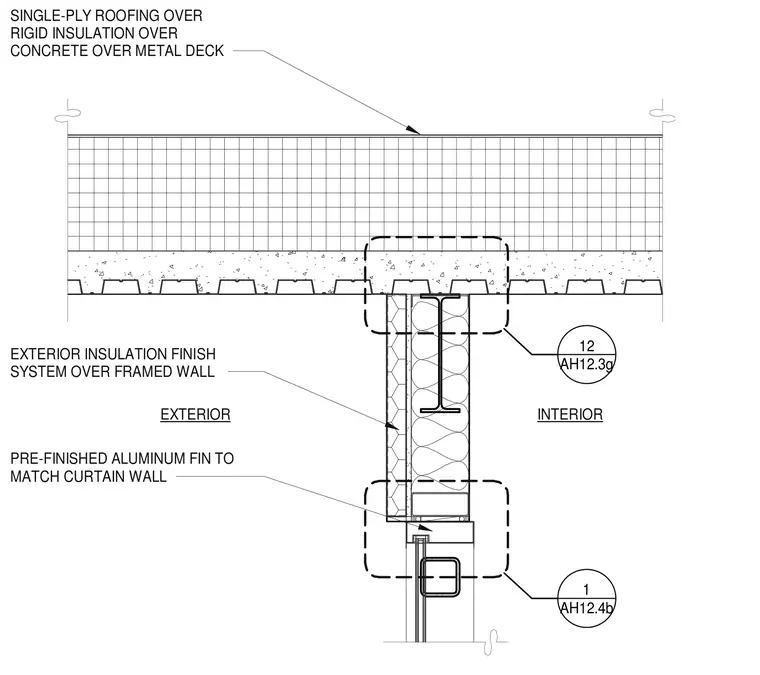

An exterior insulation finish system over a framed wall meets a single-ply roofing membrane laid over rigid insulation and a concrete slab on metal deck. A structural steel column or beam supports the roof deck above the framed wall assembly. A pre-finished aluminum fin matches the adjacent curtain wall system at the upper transition.
EXTERIOR INTERIOR EXTERIOR INSULATION FINISH SYSTEM OVER FRAMED WALL SINGLE-PLY ROOFING OVER RIGID INSULATION OVER CONCRETE OVER METAL DECK PRE-FINISHED ALUMINUM FIN TO MATCH CURTAIN WALL AH12.4b 1 AH12.3g 12
