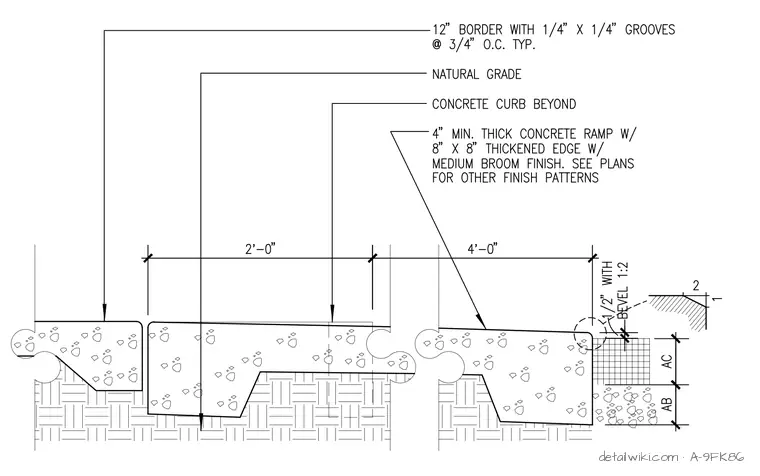

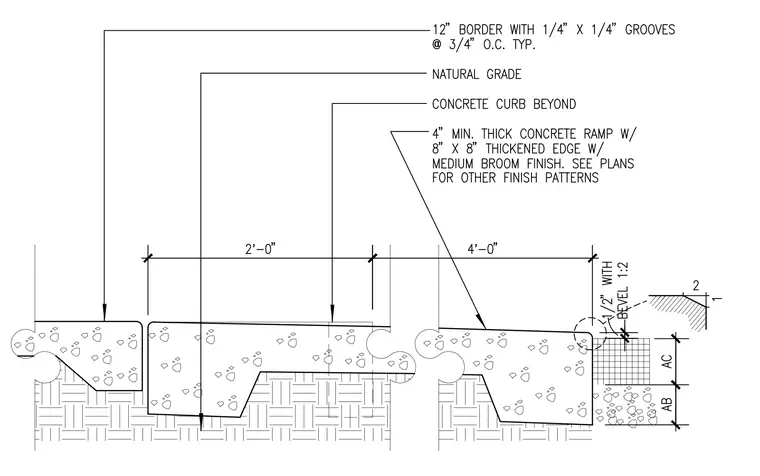

This assembly consists of a four-inch minimum thick concrete ramp with an eight-inch by eight-inch thickened edge and a medium broom finish. The ramp is flanked by a twelve-inch wide border featuring one-quarter-inch by one-quarter-inch grooves spaced at three-quarters of an inch on center, typical. A one-half-inch bevel at a one-to-two slope is provided at the edge transition. The assembly is situated adjacent to a concrete curb and natural grade as indicated.
