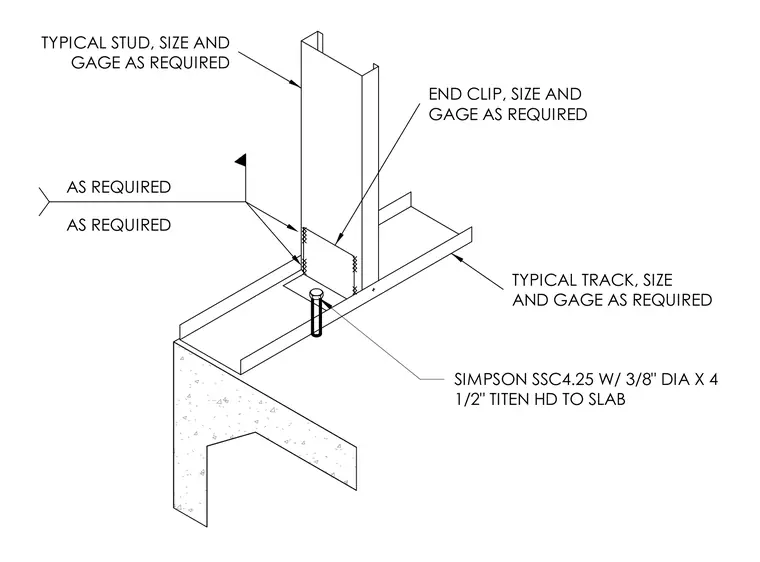

A cold-formed steel stud of size and gauge as required rests within a typical track of size and gauge as required. An end clip of size and gauge as required connects the stud to the track and slab. A Simpson SSC4.25 anchor secured with a three-eighths-inch diameter by four-and-one-half-inch Titen HD anchor bolt anchors the assembly to the concrete slab.
AS REQUIRED AS REQUIRED TYPICAL STUD, SIZE AND GAGE AS REQUIRED END CLIP, SIZE AND GAGE AS REQUIRED TYPICAL TRACK, SIZE AND GAGE AS REQUIRED SIMPSON SSC4.25 W/ 3/8" DIA X 4 1/2" TITEN HD TO SLAB
