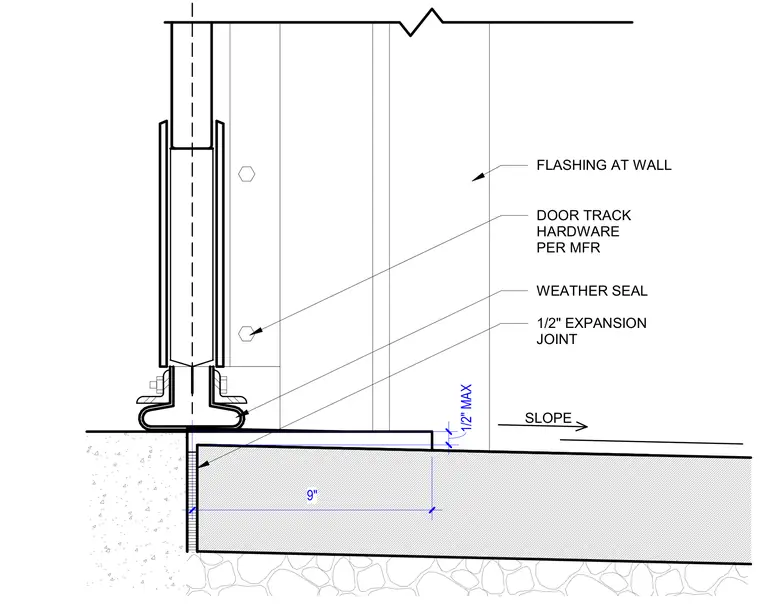

A coiling door sill assembly sits atop a concrete slab with a sloping floor finish and a nine-inch dimensioned edge. Door track hardware is secured to the wall per manufacturer specifications with associated wall flashing. A weather seal is integrated at the base alongside a one-half-inch expansion joint.
FLASHING AT WALL DOOR TRACK HARDWARE PER MFR WEATHER SEAL 1/2" EXPANSION JOINT SLOPE 9" 1/2" MAX
