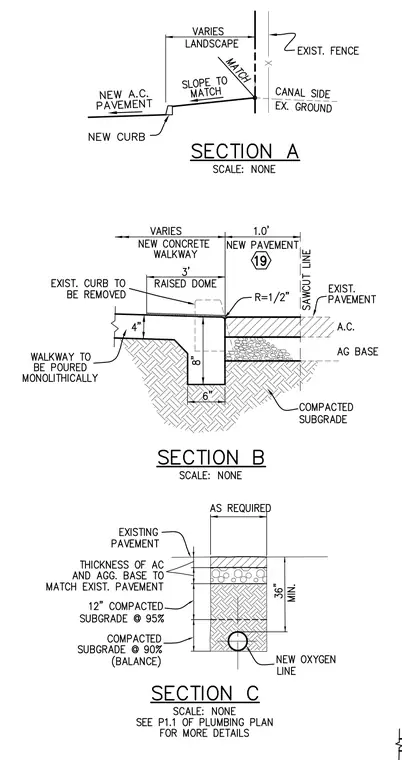

Section A details the transition between new asphalt concrete pavement with a new curb, variable landscape grading, and existing fence line at the canal side. Section B details a new concrete walkway poured monolithically with a curb, featuring a three-foot raised dome adjacent to new asphalt pavement, aggregate base, and a sawcut line against existing pavement. Section C details a trench section containing a new oxygen line below compacted subgrade and aggregate base matching existing pavement thickness.
