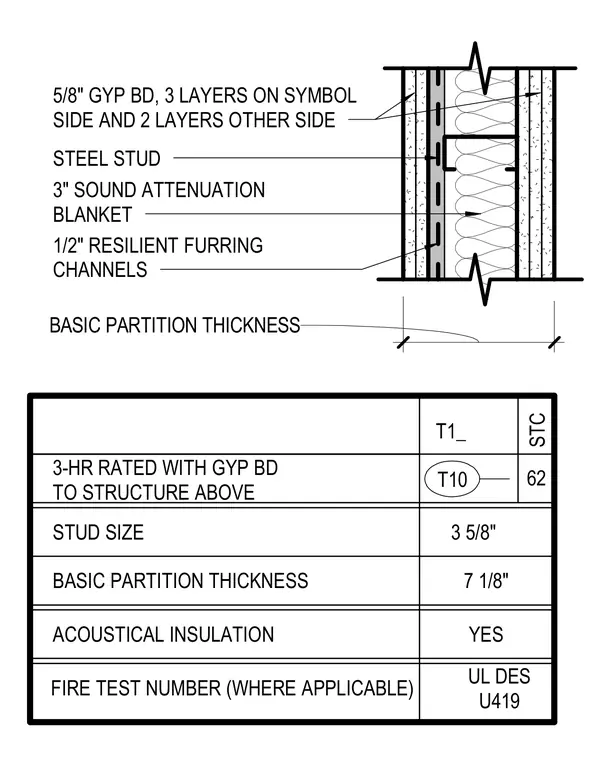

This three-hour rated interior partition features 3-5/8 inch steel studs framed with a 3 inch sound attenuation blanket in the cavity. One side is finished with three layers of 5/8 inch gypsum board applied over 1/2 inch resilient furring channels, while the opposing side receives two layers of 5/8 inch gypsum board. The entire assembly achieves an STC rating of 62 and corresponds to Underwriters Laboratories design UL U419. Total basic partition thickness measures 7-1/8 inches.
5/8" GYP BD, 3 LAYERS ON SYMBOL SIDE AND 2 LAYERS OTHER SIDE 3-HR RATED WITH GYP BD TO STRUCTURE ABOVE STUD SIZE BASIC PARTITION THICKNESS ACOUSTICAL INSULATION FIRE TEST NUMBER (WHERE APPLICABLE) T1_ STC 3 5/8" 7 1/8" YES UL DES U419 1/2" RESILIENT FURRING CHANNELS BASIC PARTITION THICKNESS 62 STEEL STUD 3" SOUND ATTENUATION BLANKET T10
