Exterior Wall Type Plan Detail with Cement Plaster and Metal Stud Framing

Materials

Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

About this detail

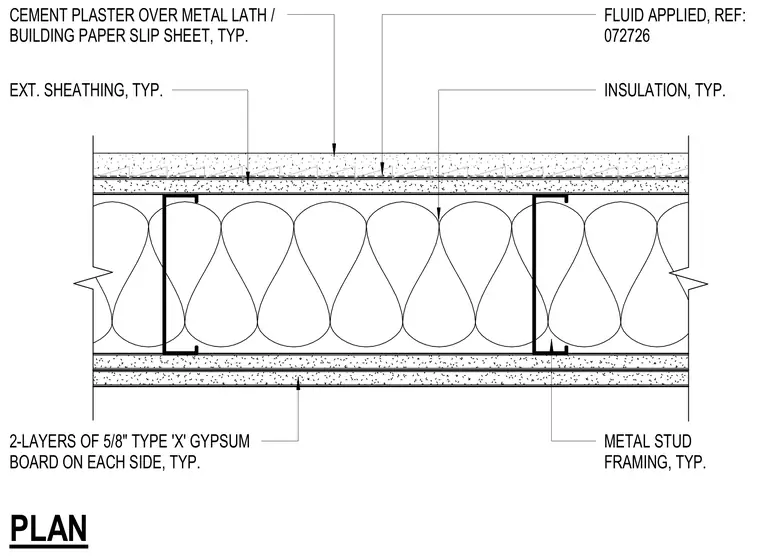

This exterior wall assembly features cold-formed metal stud framing with batt insulation filling the cavity. The exterior side receives exterior sheathing, a fluid-applied weather barrier referenced to specification 072726, a slip sheet, and cement plaster over metal lath. The interior side is finished with two layers of 5/8-inch Type X gypsum board on each side.
