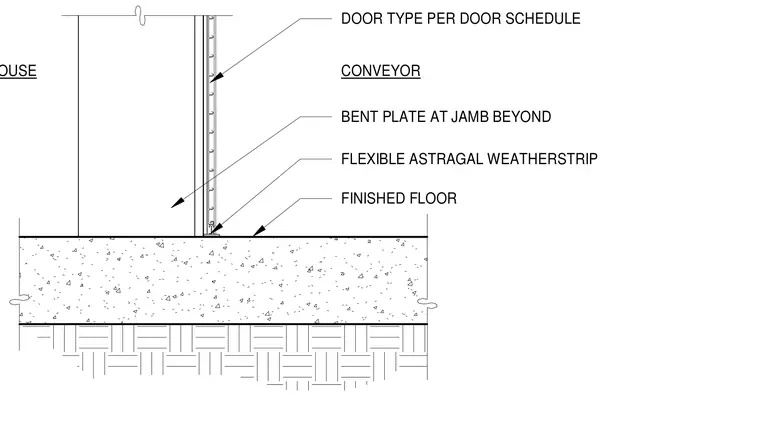

The roll-up door curtain terminates at the finished floor slab with a flexible astragal weatherstrip at the threshold. A bent plate is positioned at the jamb beyond the door assembly. The door type is selected per the door schedule at the conveyor warehouse opening.
CONVEYOR WAREHOUSE DOOR TYPE PER DOOR SCHEDULE FINISHED FLOOR FLEXIBLE ASTRAGAL WEATHERSTRIP BENT PLATE AT JAMB BEYOND
